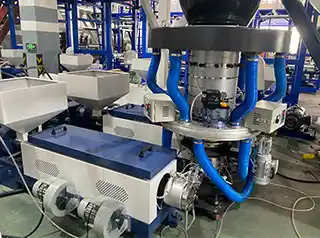

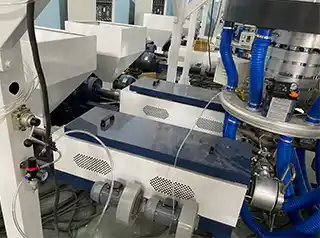

The extruder, barrel, and screw are made of 38CRMOAL alloy steel, treated with tight nitriding and precision machining. Used for making plastic composite films such as low-density polyethylene (LDPE), high-density polyethylene (HDPE), and linear low-density polyethylene (LLDPE).
Video playbackWidely used in liquid packaging, print-base material, export product packaging, industrial product packaging, etc.
|
Model |
SS-2L600MM |
SS-2L800MM |
SS-2L1000MM |
SS-2L1200MM |
|
Film Width |
100-600mm |
200-800mm |
500-1000mm |
600-1200mm |
|
One Layer Film Thickness |
0.005-0.045mm(HD) 0.01-0.1mm(LD) |
0.005-0.045mm(HD) 0.01-0.1mm(LD) |
0.005-0.045mm(HD) 0.01-0.1mm(LD) |
0.005-0.045mm(HD) 0.01-0.1mm(LD) |
|
Max Output |
40-50KG/H |
50-60KG/H |
70-80KG/H |
80-90KG/H |
|
Screw Dia |
Φ45mm × 2 (38CrMOALA) |
Φ50mm× 2 (38CrMOALA) |
Φ55mm× 2 (38CrMOALA) |
Φ55mm × 2 (38CrMOALA) |
|
Screw Length Ratio |
30:1 |
30:1 |
30:1 |
30:1 |
|
Screw Speed |
10-90rpm |
10-90rpm |
10-90rpm |
10-90rpm |
|
Cooling Fan |
120W × 1 × 2 |
120W × 1 × 2 |
250W × 2 × 2 |
250W × 2 × 2 |
|
Main motor |
11KW × 2 with inverter |
11KW × 2 with inverter |
15KW × 2 with inverter |
15KW× 2 with inverter |
|
Gear Box |
133× 2 |
133× 2 |
146 × 2 |
146 × 2 |
|
Blower |
2.2KW |
2.2KW |
3.0KW |
4.0KW |
|
Die Head |
HDΦ50mm&LDΦ120mm |
HDΦ80mm&LDΦ180mm |
HDΦ100mm&LDΦ220mm |
HDΦ120mm&LDΦ250mm |
|
Air Ring |
Φ800 (double air lip) |
Φ800 (double air lip) |
Φ1000 (double air lip) |
Φ1000 (double air lip) |
|
Machine Voltage |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
|
Total Power |
40KW |
50KW |
60KW |
65KW |
|
Machine weight |
2.5T |
3.5T |
4.0T |
4.5T |
|
Machine Dimension |
L5.8*W2.3*H4.5m |
L6.0*W2.5*H4.8m |
L6.2*W2.7*H5.2m |
L6.5*W2.9*H5.5mm |
|
Model |
SS-2L1500MM |
SS-2L2000MM |
SS-2L2500MM |
SS-2L3000MM |
|
Film Width |
600-1500mm |
1000-2000mm |
1500-2500mm |
1500-3000mm |
|
One Layer Film Thickness |
0.005-0.045mm(HD) 0.01-0.1mm(LD) |
0.01-0.1mm(LD) |
0.01-0.1mm(LD) |
0.01-0.1mm(LD) |
|
Max Output |
100-120KG/H |
100-160KG/H |
150-200KG/H |
200-280KG/H |
|
Screw Dia |
Φ65mm× 2 (38CrMOALA) |
Φ70mm× 2 (38CrMOALA) |
Φ80mm× 2 (38CrMOALA) |
Φ90mm× 2 (38CrMOALA) |
|
Screw Length Ratio |
30:1 |
30:1 |
30:1 |
30:1 |
|
Screw Speed |
10-90rpm |
10-90rpm |
10-90rpm |
10-90rpm |
|
Cooling Fan |
370W ×3 × 2 |
370W ×3 × 2 |
370W ×3 × 2 |
550W ×3 × 2 |
|
Main motor |
22KW × 2 with inverter |
30KW × 2 with inverter |
37KW × 2 with inverter |
55KW × 2 with inverter |
|
Gear Box |
180× 2 |
180× 2 |
200× 2 |
225× 2 |
|
Blower |
5.5KW |
7.5KW |
11KW |
15KW |
|
Die Head |
HDΦ150mm&LDΦ350mm |
Φ500mm |
Φ600mm |
Φ800mm |
|
Air Ring |
Φ1000 (double air lip) |
Φ1200 (double air lip) |
Φ1600 (double air lip) |
Φ1800 (double air lip) |
|
Machine Voltage |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
|
Total Power |
80KW |
120KW |
160KW |
200KW |
|
Machine weight |
7.0T |
12.0T |
15.0T |
22.0T |
|
Machine Dimension |
L6.8*W3.2*H6.2m |
L7.0*W3.7*H7.5m |
L8.0*W4.2*H9.5m |
L9.0*W4.7*H11m |
