SS-2L Series

AB LDPE Courier Bag Film Blowing Machine

The extruder, barrel, and screw of this unit are made of 38CRMOAL alloy steel, which has undergone nitriding treatment and precision machining. Used for the production of express bag roll film

Material

Film Width

100-600mm
200-800mm

Max Output

45-50kg/h
50-60kg/h

One Layer Film Thickness

0.005-0.045mm(HD)

Video playback

Product Introduction

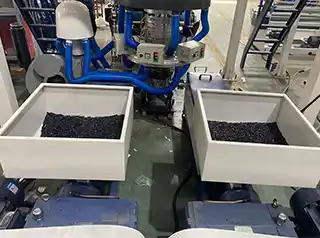

AB two-layer co extrusion:(AB two extruders can mix different raw materials and colorants)

Features of the SS-2L Series

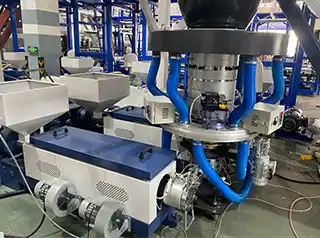

360 ° rotating die head makes film winding smoother

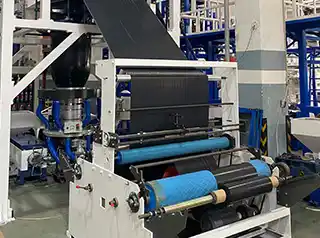

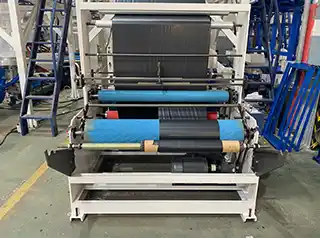

Back to back double winding: The middle slitting knife can be adjusted to cut different sizes of width, such as 500mm+600mm, 400mm+400m, and any other size within the range. can also use a slitting knife to directly open the tongue of the express bag without the need to purchase a slitting machine.

Non-stop production

Basic Parameter

Model	SS-2L1000MM	SS-2L1200MM
Film Width	500-1000mm	600-1200mm
One Layer Film Thickness	0.005-0.045mm(HD) 0.01-0.1mm(LD)	0.005-0.045mm(HD) 0.01-0.1mm(LD)
Max Output	70-80KG/H	80-90KG/H
Screw Dia	Φ55mm× 2 (38CrMOALA)	Φ55mm × 2 (38CrMOALA)
Screw Length Ratio	30:1	30:1
Screw Speed	10-90rpm	10-90rpm
Cooling Fan	250W × 2 × 2	250W × 2 × 2
Main motor	15KW × 2 with inverter	15KW× 2 with inverter
Gear Box	146 × 2	146 × 2
Blower	3.0KW	4.0KW
Die Head (two layers)	Rotary die LDΦ220mm	Rotary die LDΦ250mm
Air Ring	Φ1000 (double air lip)	Φ1000 (double air lip)
Winder	Double winder	Double winder
Machine Voltage	380V 50HZ/220V 60HZ (can be customizable)	380V 50HZ/220V 60HZ (can be customizable)
Total Power	60KW	65KW
Machine weight	4.5T	5.0T
Machine Dimension	L6.5W2.7H5.5m	L6.8W2.9H5.8mm

Detailed image of the SS-2L Series

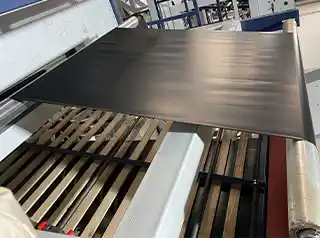

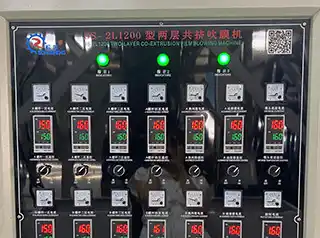

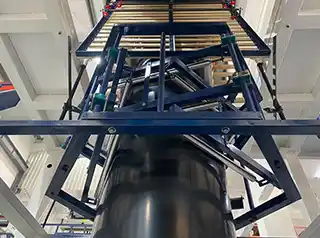

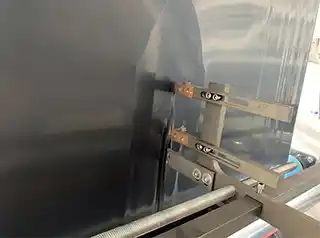

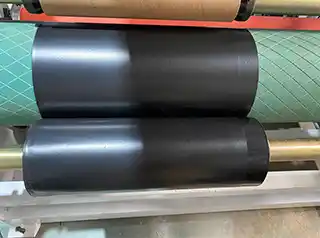

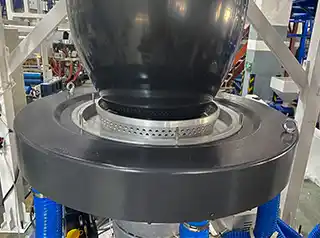

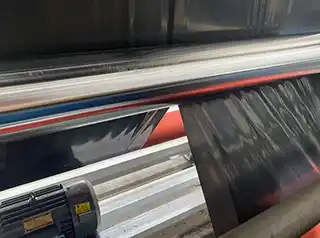

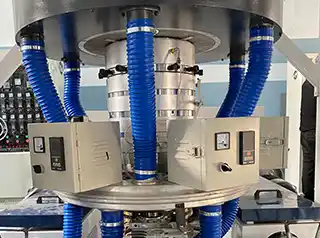

Machine details

After-sales service

Nearly 30 years of industry experience
How long is the equipment warranty?
How many people are on the after-sales team?

Maintenance and warranty

Online Consultation

What's the maximum output of your blown film lines?

Our high-output blown film machines achieve production r0ates up to 400kg/h while maintaining excellent thickness uniformity and film consistency.

How stable is your blown film equipment for continuous operation?

What's the energy consumption of your blown film equipment?

Featuring advanced energy-saving technology, our blown film lines reduce power consumption by up to 30% compared to conventional models.

Can your blown film machines process recycled materials?

Yes, our specialized screw designs and filtration systems efficiently handle high percentages of PCR materials while maintaining film quality.

Do you provide installation support for blown film equipment?

We offer comprehensive installation, commissioning, and operator training to ensure optimal performance from day one.
