Also machine can make pearlescent film and biodegradable film through different raw material formulas. This machine is currently the preferred machinery with high cost-effectiveness in the market.

Basic Parameter

Model	SS-LDHL600MM	SS-LDHL800MM	SS-LDHL1000MM	SS-LDHL1200MM	SS-LDHL1500MM
Film Width	100-600mm	200-800mm	300-1000mm	400-1200mm	500-1500mm
One Layer Film Thickness	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm
Max Output	45-50KG/H	50-60KG/H	80-90KG/H	90-100KG/H	100-120KG/H
Screw Dia	Φ45mm (metallic)	Φ50mm (metallic)	Φ60mm (metallic)	Φ65mm (metallic)	Φ75mm (metallic)
Screw Length Ratio	30:1	30:1	30:1	30:1	30:1
Screw Speed	10-150rpm (high speed)	10-150rpm (high speed)	10-150rpm (high speed)	10-150rpm (high speed)	10-140rpm (high speed)
Cooling Fan	250W ×2	250W × 2	370W ×3	370W ×3	370W ×3
Main motor	15KW with inverter	18.5KW with inverter	30KW with inverter	37KW with inverter	55KW with inverter
Gear Box	146	173	200	200	225
Blower	2.2KW	3.0KW	4.0KW	5.5KW	7.5KW

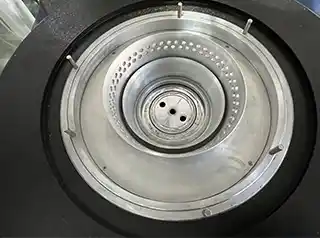

Die Head	LDΦ120mm (Fix die)	LDΦ150mm (Fix die)	LDΦ220mm (Fix die)	LDΦ250mm (Fix die)	LDΦ350mm
Air Ring	Φ700 (double air lip)	Φ800 (double air lip)	Φ1000 (double air lip)	Φ1000 (double air lip)	Φ1200 (double air lip)
Machine Voltage	380V 50HZ/220V 60HZ (can be customizable)	380V 50HZ/220V 60HZ (can be customizable)	380V 50HZ/220V 60HZ (can be customizable)	380V 50HZ/220V 60HZ (can be customizable)	380V 50HZ/220V 60HZ (can be customizable)
Total Power	35KW	40KW	55KW	65KW	SS-LDHL1500MM
Machine weight	2.5T	3.0T	3.5T	6.0T	500-1500mm
Machine Dimension	L4.8W2.2H4.5m	L5.0W2.4H5.2m	L5.5W2.6H5.5m	L5.5W2.8H6.2mm	0.01-0.1mm

After-sales service

Nearly 30 years of industry experience
How long is the equipment warranty?
How many people are on the after-sales team?

Maintenance and warranty

Online Consultation

What's the maximum output of your blown film lines?

Our high-output blown film machines achieve production r0ates up to 400kg/h while maintaining excellent thickness uniformity and film consistency.

How stable is your blown film equipment for continuous operation?

What's the energy consumption of your blown film equipment?

Featuring advanced energy-saving technology, our blown film lines reduce power consumption by up to 30% compared to conventional models.

Can your blown film machines process recycled materials?

Yes, our specialized screw designs and filtration systems efficiently handle high percentages of PCR materials while maintaining film quality.

Do you provide installation support for blown film equipment?

We offer comprehensive installation, commissioning, and operator training to ensure optimal performance from day one.
