SS-3L600MM Series

Three Colors Strips Film Blowing Machine

Name: Three Colors Strips Film Blowing Machine
Brand: SongSheng
SKU: 00028
Rating: 4.9 (64 reviews)

Its suitable for making high-density polyethylene (HDPE), low-density polyethylene (LDPE), and linear low-density polyethylene (LLDPE) plastic films. Machine used to make three Colors striped vest bags, garbage bags, etc. can be produced without printing, with bright colors and uniform lines, suitable for fields such as food and clothing packaging.

Video playback

Product Introduction

The screw and barrel are made of 38CRMOALA alloy , which has undergone nitriding treatment and precision machining, with high hardness, strong corrosion resistance, and durability.

Features of the SS-3L600MM Series

ABC three screw extrusion, can mix different color masterbatch particles
The three layered structure of the die head adopts interval layering, with a total of 36 lines.
Special composite die head achieves laminar flow intersection of three types of melts, with a die head diameter accuracy of ± 0.01mm, ensuring clear boundaries of dual color stripes;

Non-stop production

Basic Parameter

Model	SS-3L 600MM
Film Width	100-600mm
Rollyer width	700mm
One Layer Film Thickness	0.005-0.045mm(HD)
Max Output	55-60KG/H
Screw Dia	Φ45mm × 3 (38CrMOALA)
Screw Length Ratio	30:1
Screw Speed	10-90rpm
Cooling Fan	120W × 2 × 3
Main motor	11KW ×3 with inverter
Gear Box	133× 3
Blower	2.2KW
Die Head	Φ60mm (HD) (three layer specialdie head structure for 3 color trips)
Air Ring	Φ800
Winder	Single Winder
Machine Voltage	380V 50HZ/220V 60HZ (can be customizable)
Total Power	50KW
Machine weight	3.0T
Machine Dimension	L6.2W4.5H5.2m

Detailed image of the SS-3L600MM Series

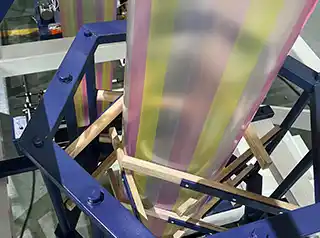

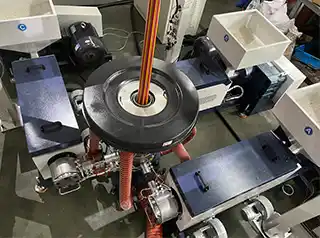

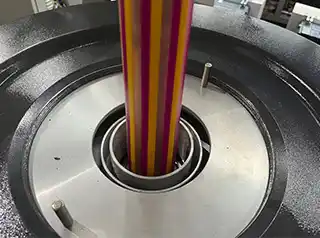

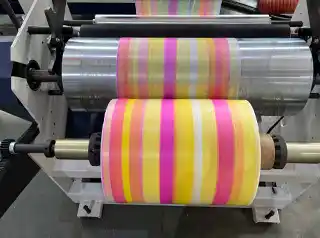

Machine details

After-sales service

Nearly 30 years of industry experience
How long is the equipment warranty?
How many people are on the after-sales team?

Maintenance and warranty

Online Consultation

What's the maximum output of your blown film lines?

Our high-output blown film machines achieve production r0ates up to 400kg/h while maintaining excellent thickness uniformity and film consistency.

How stable is your blown film equipment for continuous operation?

What's the energy consumption of your blown film equipment?

Featuring advanced energy-saving technology, our blown film lines reduce power consumption by up to 30% compared to conventional models.

Can your blown film machines process recycled materials?

Yes, our specialized screw designs and filtration systems efficiently handle high percentages of PCR materials while maintaining film quality.

Do you provide installation support for blown film equipment?

We offer comprehensive installation, commissioning, and operator training to ensure optimal performance from day one.
