Mono Layer Double Die Film Blowing Machine（high speed model）

SS-H2 Series

High-Speed Single Layer Double Die Blown Film Line

Name: High-Speed Single Layer Double Die Blown Film Line
Brand: SongSheng
SKU: 00024
Rating: 4.9 (62 reviews)

Used for blowing low-density polyethylene (LDPE) and high-density polyethylene (HDPE) plastic films. It can be made into various vest bags, flat bags, and widely used in packaging for food, clothing, textiles, industry, and other industries.

Material

Film Width

100-600mm× 2
200-800mm× 2

Max Output

80-90kg/h
90-100kg/h

One Layer Film Thickness

0.005-0.045mm(HD)

Video playback

Product Introduction

The barrel and screw of the extruder are made of 38CRMOAL alloy steel, which has been nitrided and precision processed.

The machine has been scientifically designed single screw extrusion with two die heads, which has the advantages of higher production capacity, saves energy, labor and production plant..

Non-stop production

Basic Parameter

Model	SS-60H2 600MM	SS-65H2 800MM
Film Width	100-600mm× 2	200-800mm× 2
One Layer Film Thickness	0.005-0.045mm(HD)	0.005-0.045mm(HD)
Max Output	80-90KG/H	90-100KG/H
Screw Dia	Φ55mm (high speed alloy)	Φ65mm (high speed alloy)
Screw Length Ratio	30:1	30:1
Screw Speed	10-150rpm	10-150rpm
Cooling Fan	370W × 2	370W × 2
Main motor	22KW with inverter	37KW with inverter
Gear Box	180	200
Blower	2.2KW	3.7KW
Die Head	Fix die Φ60mm(HD) × 2	Fix die Φ80mm(HD)× 2
Winder	Single winder × 2	Single winder × 2
Air Ring	Φ700× 2(high speed type)	Φ700 × 2(high speed type)
Machine Voltage	380V 50HZ/220V 60HZ (can be customizable)	380V 50HZ/220V 60HZ (can be customizable)
Total Power	50KW	55KW
Machine weight	2.8T	3.0T
Machine Dimension	L5.3W3.2H4.3m	L5.5W3.4H4.5m

Detailed image of the SS-H2 Series

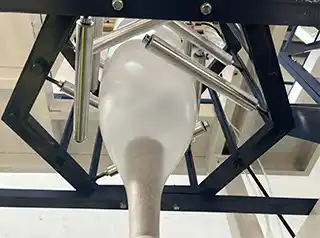

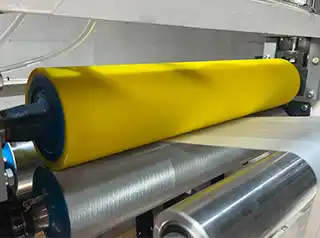

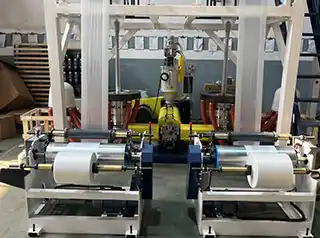

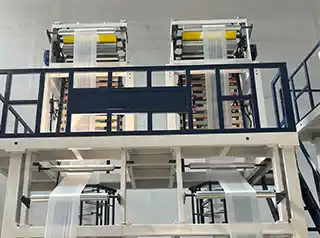

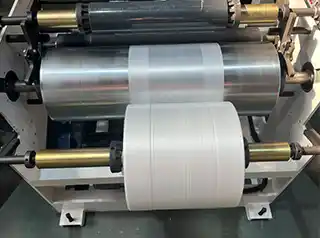

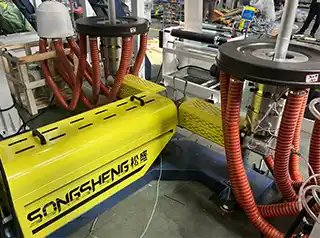

Machine details

After-sales service

Nearly 30 years of industry experience
How long is the equipment warranty?
How many people are on the after-sales team?

Maintenance and warranty

Online Consultation

What's the maximum output of your blown film lines?

Our high-output blown film machines achieve production r0ates up to 400kg/h while maintaining excellent thickness uniformity and film consistency.

How stable is your blown film equipment for continuous operation?

What's the energy consumption of your blown film equipment?

Featuring advanced energy-saving technology, our blown film lines reduce power consumption by up to 30% compared to conventional models.

Can your blown film machines process recycled materials?

Yes, our specialized screw designs and filtration systems efficiently handle high percentages of PCR materials while maintaining film quality.

Do you provide installation support for blown film equipment?

We offer comprehensive installation, commissioning, and operator training to ensure optimal performance from day one.
