SS-GS 450×2 Series

Automatic High Speed T-shirt Bag Making Machine 2 Lines

Name: Automatic High Speed T-shirt Bag Making Machine 2 Lines
Brand: SongSheng
SKU: 00022
Rating: 4.9 (61 reviews)

This machine uses HDPE film as raw material and is currently the most advanced bag making equipment for producing supermarket bags, vest bags, vest bags, and market bags.

Max. Bag Width

350mm×2

Max. Bag Length

700mm×2

Bag-cutting Thickness

0.01mm-0.05mm

Bag-cutting Speed

200-300pcs/min×2

Video playback

Product Introduction

Machine speed: 300pcs/min * 2 lines

This machine has the characteristics of saving labor, reducing costs, one-time molding, low failure rate, and high output

T-shirt Bag

Features of the SS-GS 450×2 Series

Using the German CK color code tracker, the sealing and cutting length is more accurate and the error is smaller.
Adopting the most advanced microcomputer control system, it has fast speed, precision, and no lag.
It has an independent rear feeding multi roller buffer device frame that achieves very precise synchronization with the front feeding.
The most competitive aspect in the market is the ability of machines to distinguish and accurately produce bags regardless of the texture of the film or printing color code errors.

Non-stop production

Basic Parameter

Model	SS-GS400×2	SS-GS450×2
Max. Bag Width	350mm×2	400mm×2
Max. Bag Length	700mm×2	700mm×2
Bag-cutting Thickness (one layer)	0.01mm-0.05mm	0.01mm-0.05mm
Bag-cutting Speed	200-300pcs/min×2	200-300pcs/min×2
Main Motor	1.5KW	1.5KW
Error in Length	±1mm	±1mm
Driving System	3.0KW ×2 Servo driving	3.0KW ×2 Servo driving
Conveyor Belt Length	1500mm	1500mm
Effective Folding Length	350mm	350mm
Optional	EPC/Tension Control	EPC/Tension Control
Weight	2300KG	2500KG
Dimension	8.0m×1.6m×1.8m	8.0m×1.8m×1.8m

Detailed image of the SS-GS 450×2 Series

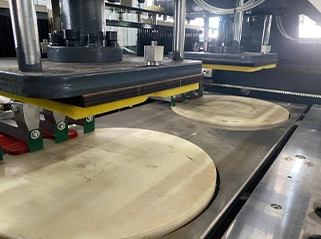

Machine details

After-sales service

Nearly 30 years of industry experience
How long is the equipment warranty?
How many people are on the after-sales team?

Maintenance and warranty

Online Consultation

What's the maximum speed of your bag making machines?

Our high-speed bag making equipment reaches production speeds up to 700 bags/minute with precise sealing and cutting accuracy.

How reliable is your bag making equipment's sealing system?

Featuring advanced temperature control and pressure regulation, our sealing systems ensure perfect seal integrity across various materials.

What materials can your bag machines handle?

Our versatile bag making equipment processes everything from simple PE to complex multi-layer laminates with quick changeover capability.

How user-friendly is your bag making equipment?

With intuitive touchscreen controls and automated settings, our machines require minimal operator training for efficient operation.

Do you offer customized bag making solutions?

We provide tailored solutions including special seal configurations, handle attachments, and size variations to meet specific requirements.
