Mono Layer Double Die Biodegradable/Composatble Film Blowing Machine (high speed model)

SS-80H2 80mm Series

High-Speed Biodegradable Film Blowing Machine Double Die

Used for blowing low-density polyethylene (LDPE) and high-density polyethylene (HDPE) plastic films. It can be made into various vest bags, flat bags, and widely used in packaging for food, clothing, textiles, industry, and other industries.

Material

Film Width

200-800mm× 2

Max Output

100-120kg/h

One Layer Film Thickness

0.005-0.045mm(HD)

Video playback

Product Introduction

The barrel and screw of the extruder are made of 38CRMOAL alloy steel, which has been nitrided and precision processed.

The machine has been scientifically designed single screw extrusion with two die heads, which has the advantages of higher production capacity, saves energy, labor and production plant.

Non-stop production

Basic Parameter

Model	SS-80H2 800MM
Film Width	200-800mm× 2
One Layer Film Thickness	0.005-0.045mm(HD)
Max Output	100-120KG/H
Screw Dia	Φ80mm(high speed alloy)
Screw Length Ratio	32:1
Screw Speed	10-150rpm
Cooling Fan	370W × 4
Main motor	55KW with inverter
Gear Box	225
Blower	3.7KW
Die Head	Rotary die Φ150mm× 2 (biodegrada die structure)

Detailed image of the SS-80H2 80mm Series

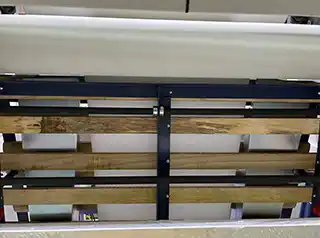

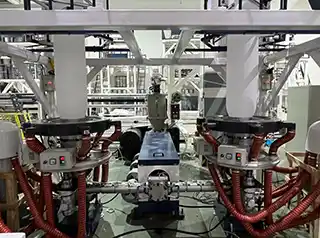

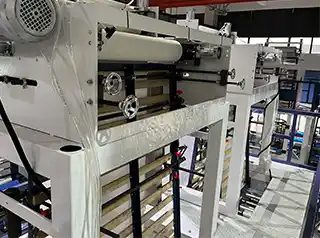

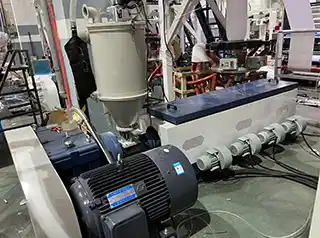

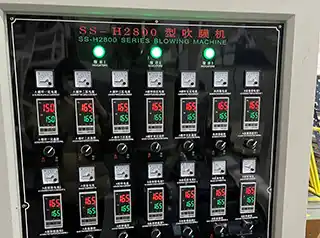

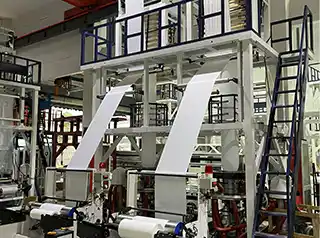

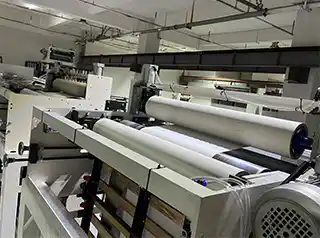

Machine details

After-sales service

Nearly 30 years of industry experience
How long is the equipment warranty?
How many people are on the after-sales team?

Maintenance and warranty

Online Consultation

What's the maximum output of your blown film lines?

Our high-output blown film machines achieve production r0ates up to 400kg/h while maintaining excellent thickness uniformity and film consistency.

How stable is your blown film equipment for continuous operation?

What's the energy consumption of your blown film equipment?

Featuring advanced energy-saving technology, our blown film lines reduce power consumption by up to 30% compared to conventional models.

Can your blown film machines process recycled materials?

Yes, our specialized screw designs and filtration systems efficiently handle high percentages of PCR materials while maintaining film quality.

Do you provide installation support for blown film equipment?

We offer comprehensive installation, commissioning, and operator training to ensure optimal performance from day one.
