SS-GFQ Series

Dual Rack Four Lines Hot Sealing Bag Cold Cutting Machine

Used for making HDPE/LDPE Flat Bag & T-shirt Bag.

Max. Bag Width

700mm× 2 350mm× 4
900mm× 2 450mm× 4
1100mm× 2 500mm× 4

Max. Bag Length

1400mm

Bag-cutting Thickness

0.01mm-0.12mm

Bag-cutting Speed

50-120pcs/min × 4

Video playback

Product Introduction

PLC control, automatic counting and configurable counting alarm, high efficiency, saving labor and time.

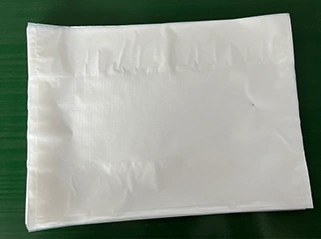

Sample

Features of the SS-GFQ Series

Servo motor fixed length, photoelectric tracking, accurate and stable.
Hot sealing and cold cutting device.
Adopting a dual purpose hot knife, it can be used to produce T-shirt /vest bags. If makingvest bags, please equipt a separate punching machine.

Non-stop production

Basic Parameter

Model	SS-GFQ800	SS-GFQ1000	SS-GFQ1200
Max. Bag Width	700mm× 2 350mm× 4	900mm× 2 450mm× 4	1100mm× 2 500mm× 4
Max. Bag Length	1400mm (Can be customizable make according to customer’s requirement)	1400mm (Can be customizable make according to customer’s requirement)	1400mm (Can be customizable make according to customer’s requirement)
Bag-cutting Thickness	0.01mm-0.12mm	0.01mm-0.12mm	0.01mm-0.12mm
Bag-cutting Speed	50-120pcs/min × 4	50-120pcs/min × 4	50-120pcs/min × 4
Error in Length	±1mm	±1mm	±1mm
Main Motor	1.5KW	1.5KW	1.5KW
Driving system	Servo motor driving	Servo motor driving	Servo motor driving
Total Power	8KW	10KW	12KW
Machine Voltage	220V single phase	220V single phase	220V single phase
Weight	800KG	900KG	1000KG
Dimension	2.3m×1.4m×1.8m	2.3m×1.6m×1.8m	2.3m×1.8m×1.8m
Conveyor	Optional	Optional	Optional

Detailed image of the SS-GFQ Series

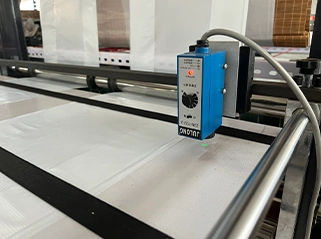

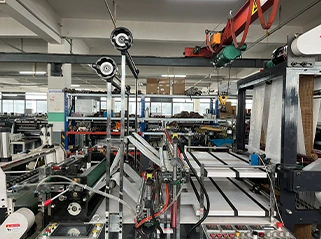

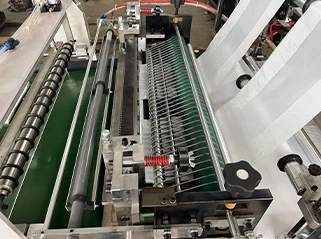

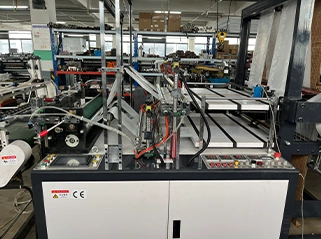

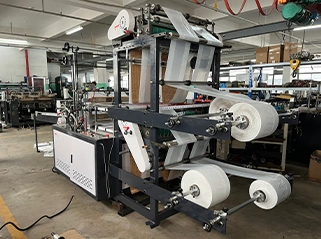

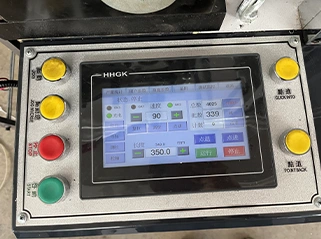

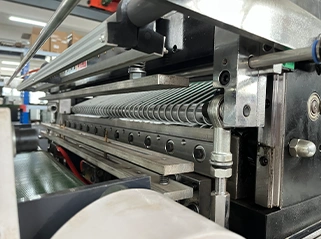

Machine details

After-sales service

Nearly 30 years of industry experience
How long is the equipment warranty?
How many people are on the after-sales team?

Maintenance and warranty

Online Consultation

What's the maximum speed of your bag making machines?

Our high-speed bag making equipment reaches production speeds up to 700 bags/minute with precise sealing and cutting accuracy.

How reliable is your bag making equipment's sealing system?

Featuring advanced temperature control and pressure regulation, our sealing systems ensure perfect seal integrity across various materials.

What materials can your bag machines handle?

Our versatile bag making equipment processes everything from simple PE to complex multi-layer laminates with quick changeover capability.

How user-friendly is your bag making equipment?

With intuitive touchscreen controls and automated settings, our machines require minimal operator training for efficient operation.

Do you offer customized bag making solutions?

We provide tailored solutions including special seal configurations, handle attachments, and size variations to meet specific requirements.
