SS-GYT Series

High Speed Four Colors Flexo Printing Machine

Used for continuous printing of various plastic packaging films such as PP/PE/OPP, pearl film, etc., with precise color matching, clear images, and single and double-sided printing completed in one time going.

Max. Material Width

800mm
1000mm
1200mm

Max. Printing Width

760mm
960mm
1160mm

NO. Of Color Printing

0+4, 1+ 3, 2+2

Video playback

Product Introduction

The main motor of this high speed printing machine adopts a synchronous belt driven hard tooth surface gearbox, which adopts a synchronous belt driven high-precision planetary gearbox (360 º adjustment plate) for each printing group.

Sample

Non-stop production

Basic Parameter

Model	SS-GYT4-800	SS-GYT4-1000	SS-GYT4-1200
Printing Material	PE/PP Film	PE/PP Film	PE/PP Film
Max. Material Width	800mm	1000mm	1200mm
Max. Printing Width	760mm	860mm	1160mm
Range of Printing Length	220-1000mm	220-1000mm	220-1000mm
NO. Of Color Printing	0+4, 1+ 3, 2+2	0+4, 1+ 3, 2+2	0+4, 1+ 3, 2+2
Max. Mechanical speed	110m/min	110m/min	110m/min
Max. Printing speed	100m/min	100m/min	100m/min
Thickness of Printing Plate	2.28mm	2.28mm	2.28mm
Register precision	≤±0.15mm	≤±0.15mm	≤±0.15mm
Main Motor	4.0KW	5.5KW	5.5KW
Inverter	4.0KW	5.5KW	5.5KW
Winding & Unwinding	Dual-station	Dual-station	Dual-station
Dia of Winding & Unwinding	600mm	600mm	600mm
Ink System	Ink Spray system with ceramic anilox & doctor blade	Ink Spray system with ceramic anilox & doctor blade	Ink Spray system with ceramic anilox & doctor blade
Weight	4000KG	5000KG	6000KG
Dimension	6m×1.8m×2.3m	6m×2.0m×2.3m	6m×2.2m×2.3m

Detailed image of the SS-GYT Series

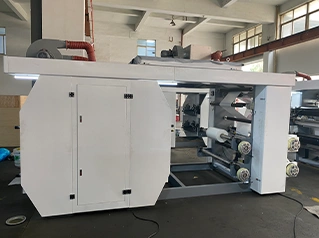

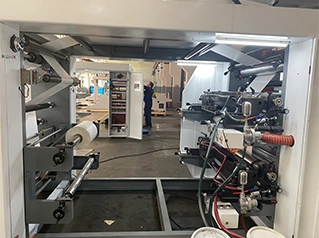

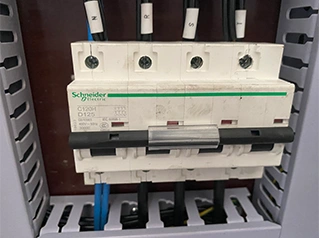

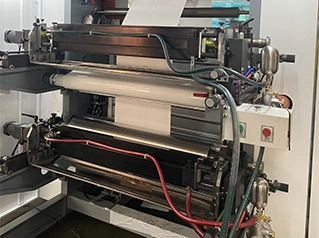

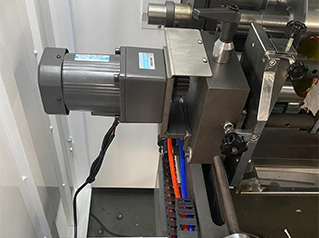

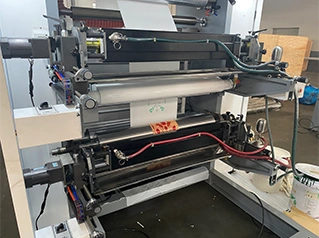

Machine details

After-sales service

Nearly 30 years of industry experience
How long is the equipment warranty?
How many people are on the after-sales team?

Maintenance and warranty

Online Consultation

What's the maximum printing width of your flexo printers?

Our flexographic printing machines accommodate widths up to 2500mm with precise registration across all printing stations.

How accurate is the color registration on your printing equipment?

Advanced servo-driven systems maintain registration accuracy within ±0.1mm throughout high-speed production runs.

What's the typical setup time for your printing machines?

Quick-change sleeve systems and automated ink management reduce job changeover time to under 30 minutes.

What substrates can your flexo printers handle?

Our versatile printing equipment handles various materials including OPP, PE, PET, and woven fabrics with consistent quality.

How environmentally friendly are your printing solutions?

We offer eco-friendly options including water-based ink systems and energy-efficient dryers to reduce environmental impact.
