SS-YT-2 Series

Two Colors Flexo Printing Machine

Used for continuous printing of various plastic packaging films such as PP/PE/OPP, pearl film, etc.

Max. Material Width

600mm
800mm
1000mm

Max. Printing Width

560mm
760mm
960mm

NO. Of Color Printing

0+2, 1+ 1

Video playback

Product Introduction

Its able to be single and double-sided printing completed in one time going.

Features of the SS-YT-2 Series

The machine is easy to operate, with accurate color matching and long service life.
Using motors with invertert control, saving electricity, and reducing operating fluctuations.
When the machine stops printing, the plate will automatically lift-up, and the ink will automatically run. When the machine starts printing, the plate will automatically drop and start printing.
360 degree non-stop plate adjustment, accurate plate alignment.

Non-stop production

Basic Parameter

Model	SS-YT2 600	SS-YT2 800	SS-YT2 1000
Printing Material	PE/PP Film	PE/PP Film	PE/PP Film
Max. Material Width	600mm	800mm	1000mm
Max. Printing Width	560mm	760mm	960mm
NO. Of Color Printing	0+2, 1+ 1	0+2, 1+ 1	0+2, 1+ 1
Max. Mechanical speed	70m/min	70m/min	70m/min
Printing speed	20-55m/min	20-55m/min	20-55m/min
Transmission way	Spur gear driving	Spur gear driving	Spur gear driving
Register precision	±0.5mm	±0.5mm	±0.5mm
Main Motor	1.5KW	1.5KW	2.2KW
Inverter	1.5KW	1.5KW	2.2KW
Machine power	6KW	8KW	11KW
Drying model	Electric heating	Electric heating	Electric heating
Dia of Winding & Unwinding	500mm	500mm	500mm
Optional	EPC/Tension Control	EPC/Tension Control	EPC/Tension Control
Weight	1500KG	1600KG	2000KG
Dimension	2.0m×1.6m×2.3m	2.2m×1.8m×2.3m	2.2m×2.0m×2.3m

Detailed image of the SS-YT-2 Series

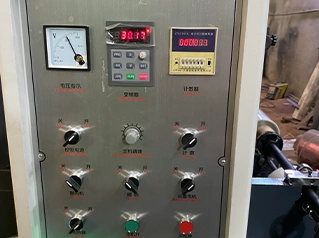

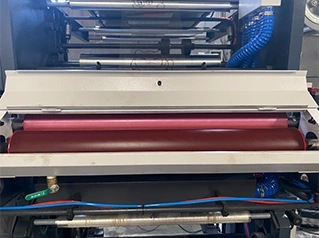

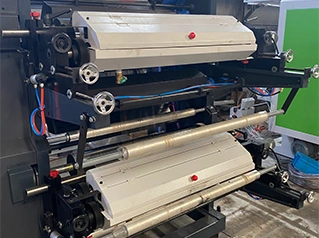

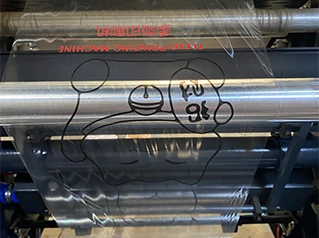

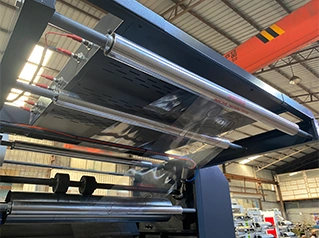

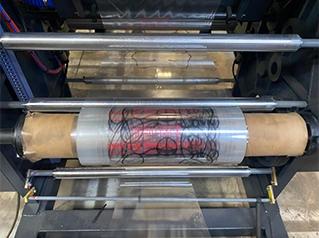

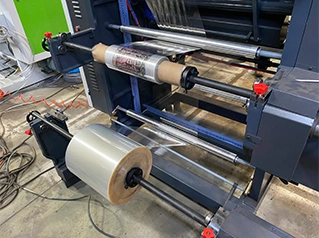

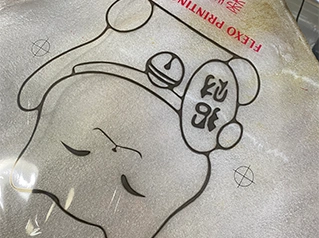

Machine details

After-sales service

Nearly 30 years of industry experience
How long is the equipment warranty?
How many people are on the after-sales team?

Maintenance and warranty

Online Consultation

What's the maximum printing width of your flexo printers?

Our flexographic printing machines accommodate widths up to 2500mm with precise registration across all printing stations.

How accurate is the color registration on your printing equipment?

Advanced servo-driven systems maintain registration accuracy within ±0.1mm throughout high-speed production runs.

What's the typical setup time for your printing machines?

Quick-change sleeve systems and automated ink management reduce job changeover time to under 30 minutes.

What substrates can your flexo printers handle?

Our versatile printing equipment handles various materials including OPP, PE, PET, and woven fabrics with consistent quality.

How environmentally friendly are your printing solutions?

We offer eco-friendly options including water-based ink systems and energy-efficient dryers to reduce environmental impact.
