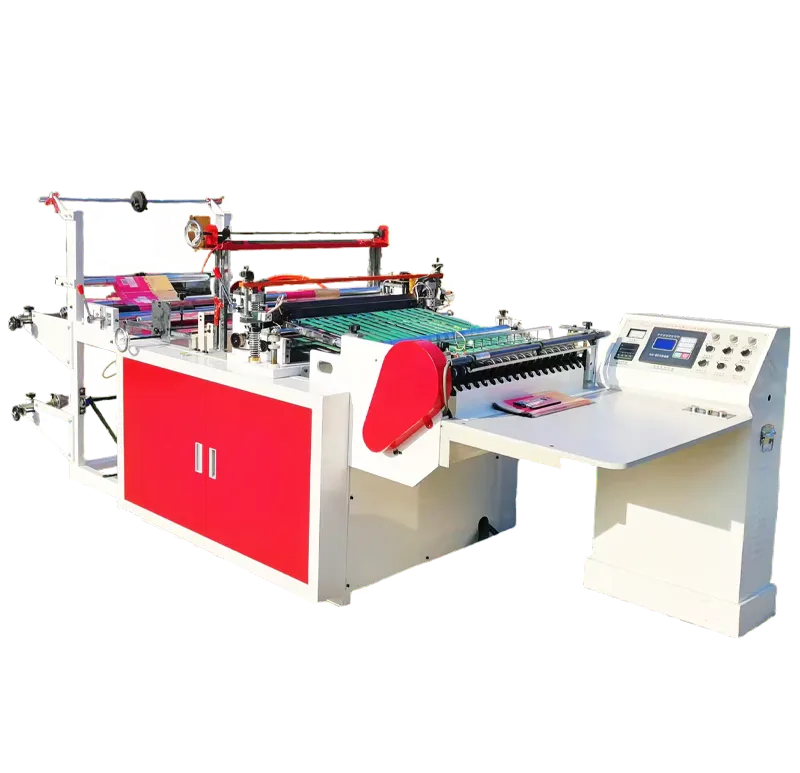

PP/OPP/PE Multi Functional Side Sealing Bag Cutting Machine (upgrade)

SS-RQL Series

PP/OPP/PE Automatic Side Sealing Bag Machine (upgrade)

Used for packaging bags and food bags made of plastic films such as PP, OPP, LDPE, etc.

Max. Bag Width

600mm
800mm
1000mm

Max. Bag Length

550mm
750mm
950mm

Bag-cutting Thickness

0.01mm-0.12mm

Bag-cutting Speed

50-150pcs/min

Video playback

Product Introduction

PLC control, automatic counting and configurable counting alarm, high efficiency, saving labor and time.

Sample

Features of the SS-RQL Series

Servo motor fixed length, photoelectric tracking, accurate and stable.
Adopt hot cutting device and intelligent temperature control system, which make bag sealing firmly and smoothly.
The host adopts converter to control speed regulation.
Pneumatic feeding
Automatic correction
With conveyor belt.

Non-stop production

Basic Parameter

Model	SS-RQL600	SS-RQL800	SS-RQL1000
Max. Bag Width	600mm	800mm	1000mm
Max. Bag Length	550mm	750mm	950mm
Bag-cutting Thickness	0.01mm-0.12mm	0.01mm-0.12mm	0.01mm-0.12mm
Bag-cutting Speed	50-150pcs/min	50-150pcs/min	50-150pcs/min
Error in Length	±1mm	±1mm	±1mm
Main Motor	1.5KW	1.5KW	2.2KW
Total Power	6.0KW	7.0KW	9.0KW
Machine Voltage	220V single phase	220V single phase	220V single phase
Weight	700KG	800KG	900KG
Dimension	4.0m×1.2m×1.5m	4m×1.4m×1.5m	4.0m×1.6m×1.5m
EPC controll	have	have	have
conveyor belt	have	have	have
Pneumatic feeding	have	have	have

Detailed image of the SS-RQL Series

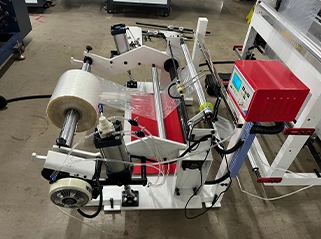

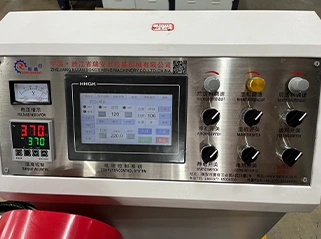

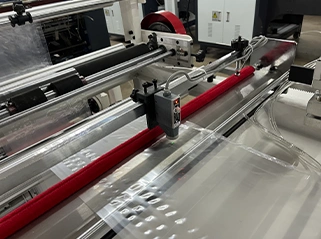

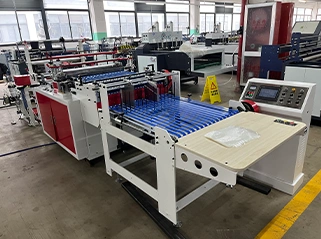

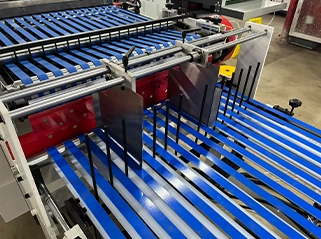

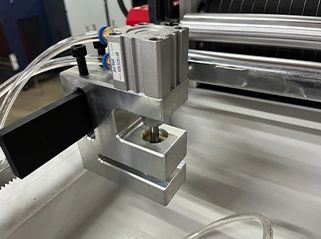

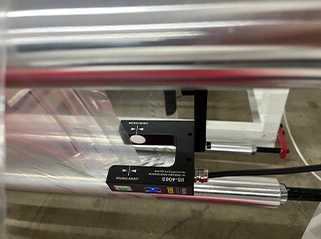

Machine details

After-sales service

Nearly 30 years of industry experience
How long is the equipment warranty?
How many people are on the after-sales team?

Maintenance and warranty

Online Consultation

What's the maximum speed of your bag making machines?

Our high-speed bag making equipment reaches production speeds up to 700 bags/minute with precise sealing and cutting accuracy.

How reliable is your bag making equipment's sealing system?

Featuring advanced temperature control and pressure regulation, our sealing systems ensure perfect seal integrity across various materials.

What materials can your bag machines handle?

Our versatile bag making equipment processes everything from simple PE to complex multi-layer laminates with quick changeover capability.

How user-friendly is your bag making equipment?

With intuitive touchscreen controls and automated settings, our machines require minimal operator training for efficient operation.

Do you offer customized bag making solutions?

We provide tailored solutions including special seal configurations, handle attachments, and size variations to meet specific requirements.
