Name: High Speed Three Layer Co-extrusion HDPE Film Blowing Machine
Brand: SongSheng
SKU: 00038
Rating: 4.9 (69 reviews)

Its suitable for making high-density polyethylene (HDPE), liner low-density polyethylene (LLDPE) plastic films, widely used in civil and industrial packaging such as food, clothing, garbage bags, vest bags, etc.

Basic Parameter

Model	SS-ABA600MM	SS-ABA800MM	SS-ABA1000MM	SS-ABA1200MM	SS-ABA1500MM
Film Width	200-600mm	200-800mm	500-1000mm	600-1200mm	600-1500mm
One Layer Film Thickness	0.005-0.045mm(HD) 0.01-0.1mm(LD)	0.005-0.045mm(HD) 0.01-0.1mm(LD)	0.005-0.045mm(HD) 0.01-0.1mm(LD)	0.005-0.045mm(HD) 0.01-0.1mm(LD)	0.005-0.045mm(HD) 0.01-0.1mm(LD)
Max Output	50-60KG/H	70-80KG/H	90-100KG/H	110-120KG/H	120-130KG/H

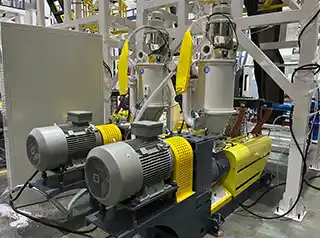

Screw Dia	Φ40mm × 2 (metallic)	Φ45mm× 2 (metallic)	Φ50mm× 2 (metallic)	Φ55mm × 2 (metallic)	Φ60mm× 2 (metallic)
Screw Length Ratio	30:1	30:1	30:1	30:1	30:1
Screw Speed	10-150rpm (high speed)	10-150rpm (high speed)	10-140rpm (high speed)	10-140rpm (high speed)	10-140rpm (high speed)
Cooling Fan	250W × 2 × 2	250W × 2 × 2	250W × 2 × 2	370W × 3×2	370W ×3 × 2

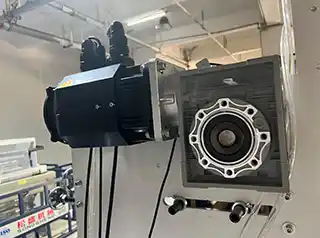

Main motor	11KW × 2 with inverter	15KW × 2 with inverter	18.5KW × 2 with inverter	22KW × 2 with inverter	30KW × 2 with inverter
Gear Box	133× 2	146× 2	173 × 2	180 × 2	200× 2
Blower	3.0KW	4.0KW	5.5KW	7.5KW	7.5KW

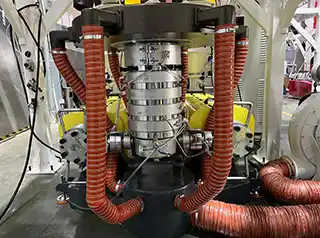

Die Head (three layers)	HDΦ50mm /LDΦ120mm	HDΦ80mm/LDΦ160mm	HDΦ100mm/LDΦ220mm	HDΦ120mm//LDΦ250mm	HDΦ150mm/LDΦ350mm

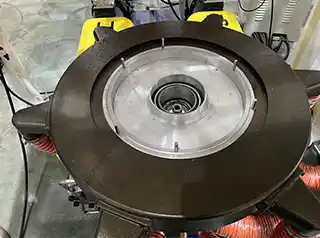

Air Ring	Φ700 (double air lip)	Φ700 (double air lip)	Φ800 (double air lip)	Φ800 (double air lip)	Φ1000 (double air lip)
Machine Voltage	380V 50HZ/220V 60HZ (can be customizable)	380V 50HZ/220V 60HZ (can be customizable)	380V 50HZ/220V 60HZ (can be customizable)	380V 50HZ/220V 60HZ (can be customizable)	380V 50HZ/220V 60HZ (can be customizable)
Total Power	48KW	58KW	65KW	78KW	98KW
Machine weight	3.0T	4.0T	5.0T	6.0T	6.5T
Machine Dimension	L5.8W2.4H4.8m	L5.8W2.6H5.2m	L6.0W2.8H5.2m	L6.2W3.0H6.5mm	L6.5W3.0H6.5m

After-sales service

Nearly 30 years of industry experience
How long is the equipment warranty?
How many people are on the after-sales team?

Maintenance and warranty

Online Consultation

What's the maximum output of your blown film lines?

Our high-output blown film machines achieve production r0ates up to 400kg/h while maintaining excellent thickness uniformity and film consistency.

How stable is your blown film equipment for continuous operation?

What's the energy consumption of your blown film equipment?

Featuring advanced energy-saving technology, our blown film lines reduce power consumption by up to 30% compared to conventional models.

Can your blown film machines process recycled materials?

Yes, our specialized screw designs and filtration systems efficiently handle high percentages of PCR materials while maintaining film quality.

Do you provide installation support for blown film equipment?

We offer comprehensive installation, commissioning, and operator training to ensure optimal performance from day one.
