Used for blowing low-density polyethylene (LDPE) and high-density polyethylene (HDPE) plastic films. It can be made into various vest bags, flat bags, and widely used in packaging for food and clothing etc.

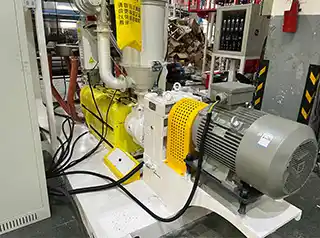

Video playbackThe screw of the extruder is made of high-speed alloy steel material, which is wear-resistant and durable.
The barrel of the extruder is made of 38CRMOAL alloy steel that has been nitrided and precision machined.

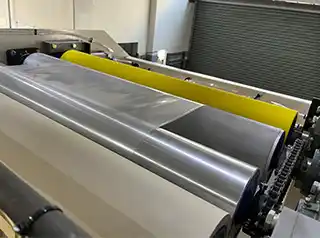

The extrusion host part, die head, traction and winding are integrated, occupying a small area.
With High configuration, high output, good brightness of blown film, strong tensile strength.
|
Model |
SS-HDHL600MM |
SS-HDHL800MM |
|
Film Width |
100-600mm |
200-800mm |
|
One Layer Film Thickness |
0.005-0.045mm |
0.005-0.045mm |
|
Max Output |
45-50KG/H |
50-60KG/H |
|
Screw Dia |
Φ45mm |
Φ50mm |
|
Screw Length Ratio |
30:1 |
30:1 |
|
Screw Speed |
10-150rpm |
10-150rpm |
|
Cooling Fan |
250W × 2 |
250W × 2 |
|
Main motor |
15KW with inverter |
18.5KW with inverter |
|
Gear Box |
146 |
173 |
|

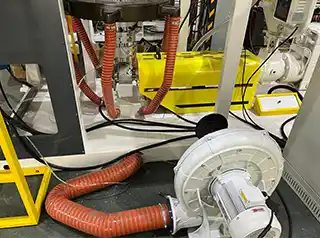

Blower |
2.2KW |
3.0KW |
|
Die Head |
HDΦ50mm |
HDΦ80mm |
|
Air Ring |
Φ700 |
Φ700 |
|
Lifter |
Optional |
Optional |
|
Machine Voltage |
380V 50HZ/220V 60HZ (can be customizable) |
380V 50HZ/220V 60HZ (can be customizable) |
|
Total Power |
35KW |
40KW |
|
Machine weight |
2.0T |
2.5T |
|
Machine Dimension |
L3.5*W2.0*H4.5m |
L3.5*W2.2*H4.5m |
