SS-H2 Series

Mono Layer Double Die Film Blowing Machine (Standard)

Name: Mono Layer Double Die Film Blowing Machine (Standard)
Brand: SongSheng
SKU: 00025
Rating: 4.9 (63 reviews)

Used for blowing low-density polyethylene (LDPE) and high-density polyethylene (HDPE) plastic films. It can be made into various vest bags, flat bags, and widely used in packaging for food, clothing, textiles, industry, and other industries.

Material

Film Width

100-600mm× 2
200-680mm× 2

Max Output

65-70kg/h
70-80kg/h

Video playback

Product Introduction

The barrel and screw of the extruder are made of 38CRMOAL alloy steel, which has been nitrided and precision processed. The machine has been scientifically designed single screw extrusion with two die heads, which has the advantages of higher production capacity, saves energy, labor and production plant.

Non-stop production

Basic Parameter

Model	SS-65H2 600MM	SS-75H2 800MM
Film Width	100-600mm× 2	200-800mm× 2
One Layer Film Thickness	0.005-0.045mm (HD)	0.005-0.045mm (HD)
One Layer Film Thickness	0.02-0.1mm (LD)	0.02-0.1mm (LD)
Max Output	65-70KG/H	70-80KG/H
Screw Dia	Φ65mm (38CrMOALA)	Φ75mm (38CrMOALA)
Screw Length Ratio	30:1	30:1
Screw Speed	10-90rpm	10-90rpm
Cooling Fan	370W × 2	370W × 2
Main motor	22KW with inverter	30KW with inverter
Gear Box	180	200
Blower	1.5KW	2.2KW
Die Head	Fix die Φ60mm(HD)× 2	Fix die Φ80mm(HD)× 2
Die Head	Φ120mm(LD)×2	Φ150mm(LD)×2
Winder	Single winder × 2	Single winder × 2
Air Ring	Φ620 × 2	Φ620 × 2
Machine Voltage	380V 50HZ/220V 60HZ (can be customizable)	380V 50HZ/220V 60HZ (can be customizable)
Total Power	50KW	58KW
Machine weight	3.5T	4.0T
Machine Dimension	L5.0 ×W3.0×H4.3m	L5.5 ×W3.4×H4.8m

Detailed image of the SS-H2 Series

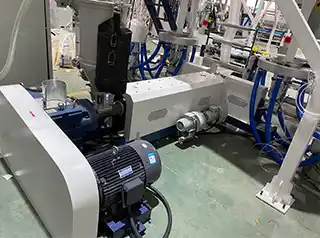

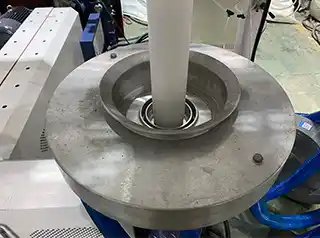

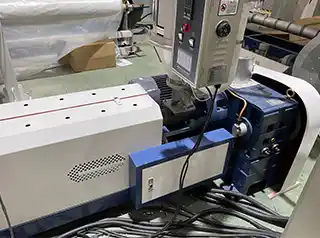

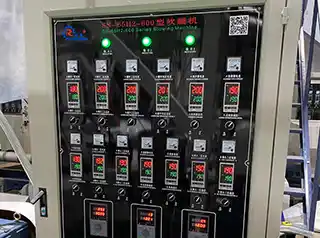

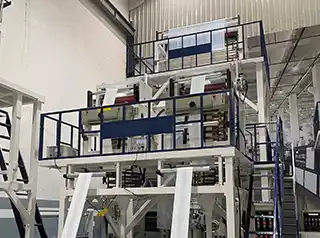

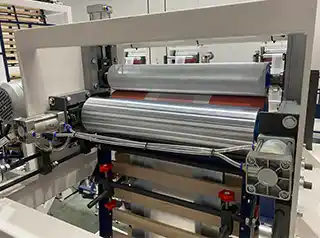

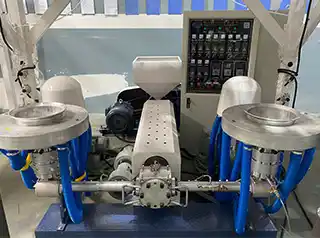

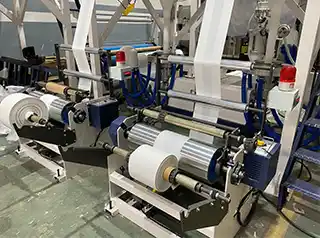

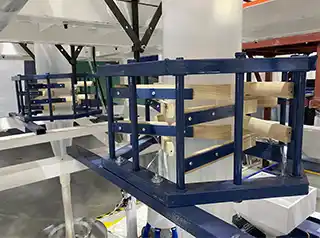

Machine details

After-sales service

Nearly 30 years of industry experience
How long is the equipment warranty?
How many people are on the after-sales team?

Maintenance and warranty

Online Consultation

What's the maximum output of your blown film lines?

Our high-output blown film machines achieve production r0ates up to 400kg/h while maintaining excellent thickness uniformity and film consistency.

How stable is your blown film equipment for continuous operation?

What's the energy consumption of your blown film equipment?

Featuring advanced energy-saving technology, our blown film lines reduce power consumption by up to 30% compared to conventional models.

Can your blown film machines process recycled materials?

Yes, our specialized screw designs and filtration systems efficiently handle high percentages of PCR materials while maintaining film quality.

Do you provide installation support for blown film equipment?

We offer comprehensive installation, commissioning, and operator training to ensure optimal performance from day one.
