SS-GS 450×2 Series

Automatic Winder High Speed Roll Bag Making Machine (roll Bag With Core)

Mainly suitable for cutting point flat roll bag, point vest/t-shirt roll bag and supermarket roll bags.

Max. Bag Width

200-400mm×2

Max. Bag Length

300-800mm×2

Bag-cutting Thickness

0.005mm-0.03mm

Bag-cutting Speed

80-230pcs/min×2

Video playback

Product Introduction

Roll up bag: with paper core/plastic core

PLC control, automatic winder for roll bag change.

Sample

Non-stop production

Basic Parameter

Model	SS-GS450×2
Bag Width	200-400mm×2
Max. Bag Length	300-800mm×2
Bag-cutting Thickness (one layer)	0.005mm-0.03mm
Bag-cutting Speed	80-230pcs/min×2
Main Motor	2.0KW
Error in Length	±1mm
Driving System	3.0KW ×2 Servo driving
Roll-change mode	Automatic (Separate left and right, count independently)
Bag type	With core
Max Diameter of final roll	100mm
Width of final roll	150-400mm
Other	With EPC
Weight	2500KG
Dimension	7.0m×2.2m×1.9m

Detailed image of the SS-GS 450×2 Series

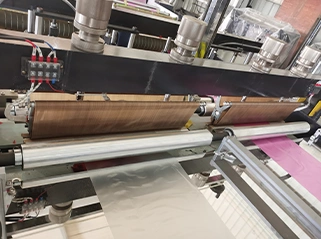

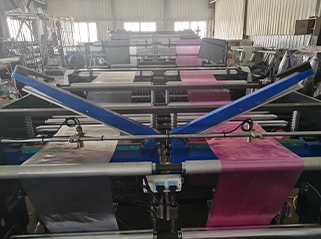

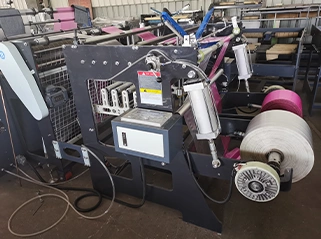

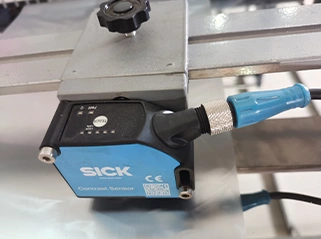

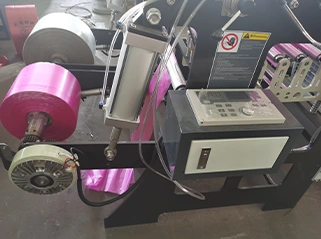

Machine details

After-sales service

Nearly 30 years of industry experience
How long is the equipment warranty?
How many people are on the after-sales team?

Maintenance and warranty

Online Consultation

What's the maximum speed of your bag making machines?

Our high-speed bag making equipment reaches production speeds up to 700 bags/minute with precise sealing and cutting accuracy.

How reliable is your bag making equipment's sealing system?

Featuring advanced temperature control and pressure regulation, our sealing systems ensure perfect seal integrity across various materials.

What materials can your bag machines handle?

Our versatile bag making equipment processes everything from simple PE to complex multi-layer laminates with quick changeover capability.

How user-friendly is your bag making equipment?

With intuitive touchscreen controls and automated settings, our machines require minimal operator training for efficient operation.

Do you offer customized bag making solutions?

We provide tailored solutions including special seal configurations, handle attachments, and size variations to meet specific requirements.
