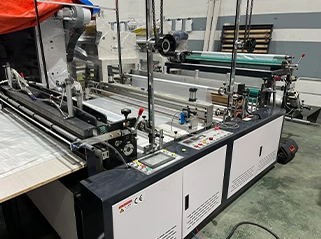

Name: Single Line Heavy Bag Making Machine (non-stretching style)
Brand: SongSheng
SKU: 00020
Rating: 4.9 (60 reviews)

Max thickness for bag: 300mic

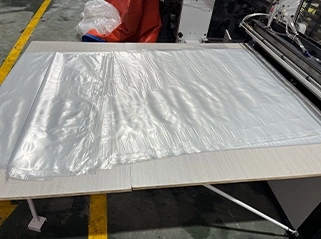

Sample

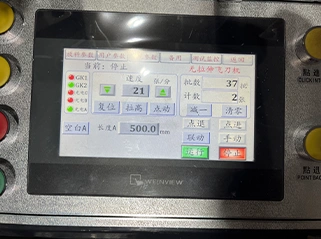

PLC control, automatic counting and configurable counting alarm, high efficiency, saving labor and time;

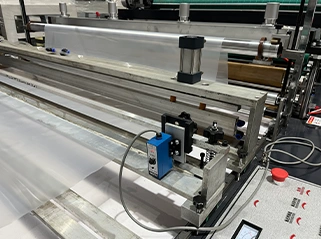

Servo motor fixed length, photoelectric tracking, accurate and stable;

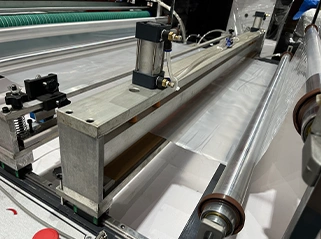

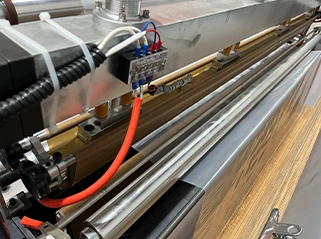

Hot sealing and cold cutting device;
Adopting a dual purpose hot knife, it can be used to produce T-shirt /vest bags. If makingvest bags, please equipt a separate punching machine.

Basic Parameter

Model	SS-GFQ600	SS-GFQ800	SS-GFQ1000	SS-GFQ1500
Max. Bag Width	500mm	700mm	900mm	1400mm
Max. Bag Length	1200mm (Can be customizable make according to customer’s requirement)	100mm (Can be customizable make according to customer’s requirement)	1500mm (Can be customizable make according to customer’s requirement)	1500mm (Can be customizable make according to customer’s requirement)
Bag-cutting Thickness	0.01mm-0.30mm	0.01mm-0.30mm	0.01mm-0.30mm	0.01mm-0.30mm
Bag-cutting Speed	30-180pcs/min	30-150pcs/min	30-150pcs/min	30-120pcs/min
Error in Length	±1mm	±1mm	±1mm	±1mm
Main Motor	1.5KW	1.5KW	1.5KW	1.5KW
Main Inverter	1.5kw	1.5kw + 0.75kw	1.5kw + 0.75kw	1.5kw +1.5kw
Driving system	Servo motor driving 2.3kw	Servo motor driving 2.3kw	Servo motor driving3.8kw	Servo motor driving3.8kw
Total Power	8KW	8KW	10KW	12kw
Machine Voltage	220V single phase	220V single phase	220V single phase	220V single phase
Weight	800KG	900KG	1000KG	1300KG
Dimension	3.3m×1.2m×1.8m	3.3m×1.4m×1.8m	3.3m×1.6m×1.8m	3.3m×2.0m×1.8m
