SS-GS Series

4 Lines Automatic High Speed T-shirt Bag Making Machine

This machine uses HDPE film as raw material and is currently the most advanced bag making equipment for producing supermarket bags, vest bags, vest bags, and market bags.

Video playback

Product Introduction

Machine speed: 300pcs/min * 2 lines

This machine has the characteristics of saving labor, reducing costs, one-time molding, low failure rate, and high output

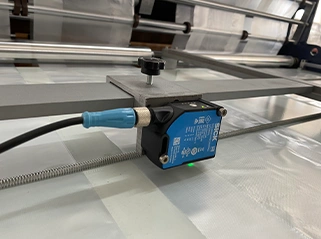

Using the German CK color code tracker, the sealing and cutting length is more accurate and the error is smaller.

T-shirt bag

Features of the SS-GS Series

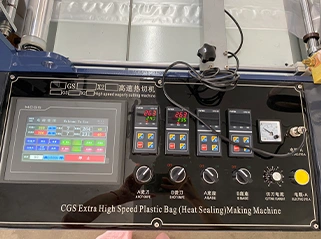

Adopting the most advanced microcomputer control system, it has fast speed, precision, and no lag.

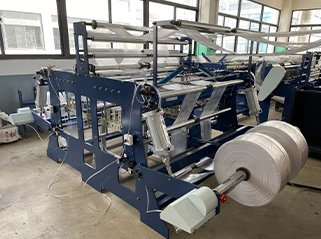

It has an independent rear feeding multi roller buffer device frame that achieves very precise synchronization with the front feeding.
The most competitive aspect in the market is the ability of machines to distinguish and accurately produce bags
regardless of the texture of the film or printing color code errors.

Non-stop production

Basic Parameter

Model	SS-GS600(4 lines)
Max. Bag Width	250mm×4
Max. Bag Length	700mm×4
Bag-cutting Thickness (one layer)	0.01mm-0.05mm
Bag-cutting Speed	150-250pcs/min×2
Material feeding roll	4 rolls
Main Motor	2.2KW
Error in Length	±1mm
Driving System	4.4KW ×2 Servo driving
Color mark	SICK×2
Conveyor Belt Length	1500mm
Effective Folding Length	Fold 700 to be 350mm
Optional	EPC/Tension Control
Weight	2800KG
Dimension	8.0m×2.1m×1.8m

Detailed image of the SS-GS Series

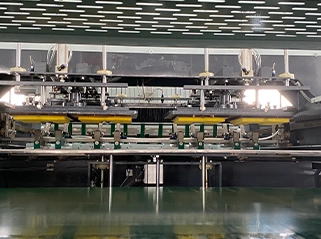

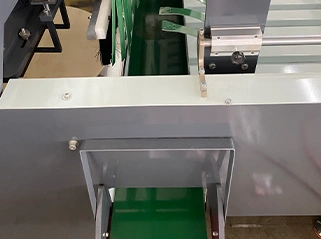

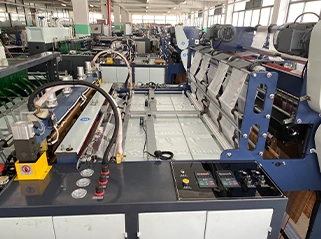

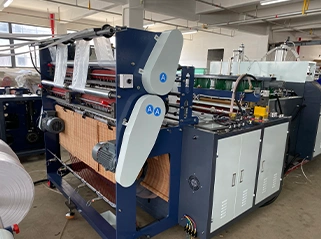

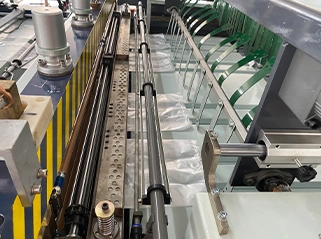

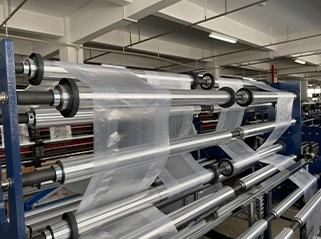

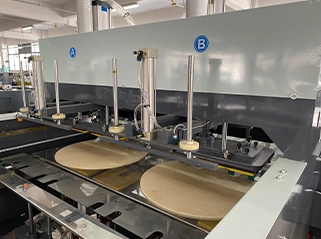

Machine details

After-sales service

Nearly 30 years of industry experience
How long is the equipment warranty?
How many people are on the after-sales team?

Maintenance and warranty

Online Consultation

What's the maximum speed of your bag making machines?

Our high-speed bag making equipment reaches production speeds up to 700 bags/minute with precise sealing and cutting accuracy.

How reliable is your bag making equipment's sealing system?

Featuring advanced temperature control and pressure regulation, our sealing systems ensure perfect seal integrity across various materials.

What materials can your bag machines handle?

Our versatile bag making equipment processes everything from simple PE to complex multi-layer laminates with quick changeover capability.

How user-friendly is your bag making equipment?

With intuitive touchscreen controls and automated settings, our machines require minimal operator training for efficient operation.

Do you offer customized bag making solutions?

We provide tailored solutions including special seal configurations, handle attachments, and size variations to meet specific requirements.
