800mm Automatic Side Sealing Bag Machine | 4-in-1

Series

800mm Model Automatic side sealing bag making machine (4 in 1)

Full Automatic side sealing soft loop handle bag making machine equipped with advanced operation system.

Video playback

Product Introduction

The raw material passed by automatic deviation correction, triangle folder, bottom gusset, top folded, heat sealing, ironing soft loop handle, Poly strings, side sealing, discharge and other processes directly out of the finished products. It have photoelectric correction, automatic tension of magnetic powder, automatic counting, the automatic stop of no raw material, electric-eye tracking and other features. It is one of the best advanced plastic bag manufacturing facilities on the market.

Sample

Features of the Series

1. This machine employs a servo-controlled feeding system, multi-channel rubber roller material storage, a constant feeding speed, and a positioning pull-rod control system, forming a highly efficient and precise raw material conveying solution

2. The machine adopts pneumatic loading，Air pressure can controllable

3. The machine adopts Pneumatic traction rod , Feeding more smoothly

4. No Stretch by servo，seal smooth ,beautiful and firm

5. ALL servo , machine running smooth

6. Automatic tally (bag making counting or loop handle counting)

7. The speed of Transfer Belts adopt frequency conversion speed regulation , The discharging is more orderly and smooth

8. Water cooling device near by sealing cut，Make the material more smooth and firm

Non-stop production

Basic Parameter

Length of bag (height of bag)	250-700mm
Width of bag	250-600mm
speed of soft loop handle bag	50-70 pcs/min
speed of strings bag	60-80 pcs/min
speed of D-cut bag	80-120 pcs/min
speed of patchi bag	50-90 pcs/min
Top folded	50 - 75 mm
bottom Inserted	30-70mm
Handle length	360mm
Handle width	30mm
Max feeding width	1600
Air pressure	6Hp
total power	11.5KW（Max 18KW）
Machine weight	5000kg
Machine dimension	12000x2500x2050mm

Detailed image of the Series

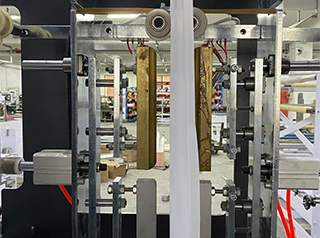

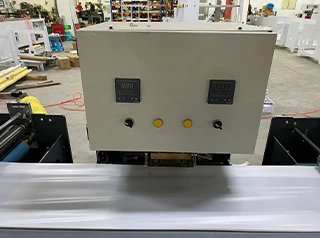

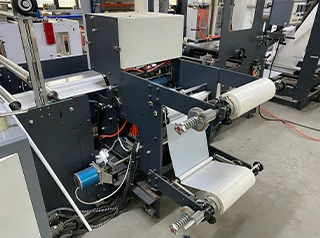

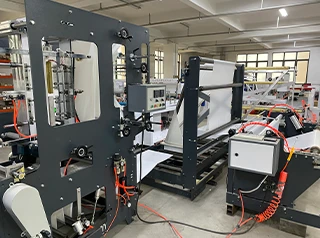

Machine details

After-sales service

Nearly 30 years of industry experience
How long is the equipment warranty?
How many people are on the after-sales team?

Maintenance and warranty

Online Consultation

What's the maximum speed of your bag making machines?

Our high-speed bag making equipment reaches production speeds up to 700 bags/minute with precise sealing and cutting accuracy.

How reliable is your bag making equipment's sealing system?

Featuring advanced temperature control and pressure regulation, our sealing systems ensure perfect seal integrity across various materials.

What materials can your bag machines handle?

Our versatile bag making equipment processes everything from simple PE to complex multi-layer laminates with quick changeover capability.

How user-friendly is your bag making equipment?

With intuitive touchscreen controls and automated settings, our machines require minimal operator training for efficient operation.

Do you offer customized bag making solutions?

We provide tailored solutions including special seal configurations, handle attachments, and size variations to meet specific requirements.
